Malwa 560F Forwarder

SKU
MALWA560F

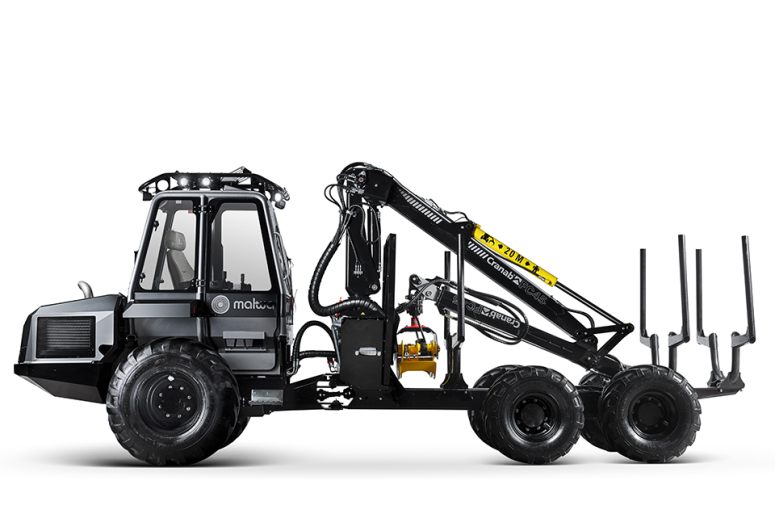

Malwa's class leading low ground-pressure forwarder built for professional use with minimal environmental impact.  Rugged build, high quality components, low net weight, high load capacity and great operator environment make this the forwarder to choose in the compact class.

Productive in - stand low impact forwarder with load capacity of 5.5 tonnes or 9 tonnes when combined with additional trailer. The low weight of the machine makes it particularly suitable for use in sensitive ground or moorland, especially with band-tracks on the rear wheels.

Top quality hydro - mechanical drive train combined with a small turning radius and excellent tracking provide unique handling in difficult terrain. The forwarder can be simply and easily transported by means of hook - lift platform or a small low loading trailer.

2.8 litre CAT - engine that meets the demands according to Euro 5/Stage - V. Choose between the FC45 crane, with 6.1 metre reach, or the FC45DT with 8.2 metre reach, both from Cranab.

A special trailer for the Malwa 560F is available to increase load capacity up to 9 tonnes and to facilitate handling of different loads without increasing pressure on the ground.



Treeline also offers this machine for hire:

https://www.treelinescotland.com/hire-malwa-560-forwarder/

Link to manufacturer:

https://malwaforest.com/en/forwarders-harvesters/560f-forwarder/

Specifications
BrandMalwa®
Load Bunk Area2 ㎡
Steering Angle± 45°
Number of Bunks as Standard3
Standard Tyre Size500/50 - 17 , 500/60 - 22.5
Standard CraneCranab FC45
Reach6.1m
Lifting Torque45.6 kNm
Lift Capacity at 3m1120 kg
Slew Torque13 kNm
Standard GrappleGrippen HSP 015
Engine Power75 hp (55 kW) @ 2,200 rpm
Oil Pressure195 bar
Oil Flow148 L/min @ 1,700 rpm
Transport Dimensions2850 x 1950 x 6300 mm (HxWxL) Ground clearance 400 mm
Weight5700.000000
Country of ManufactureSweden
