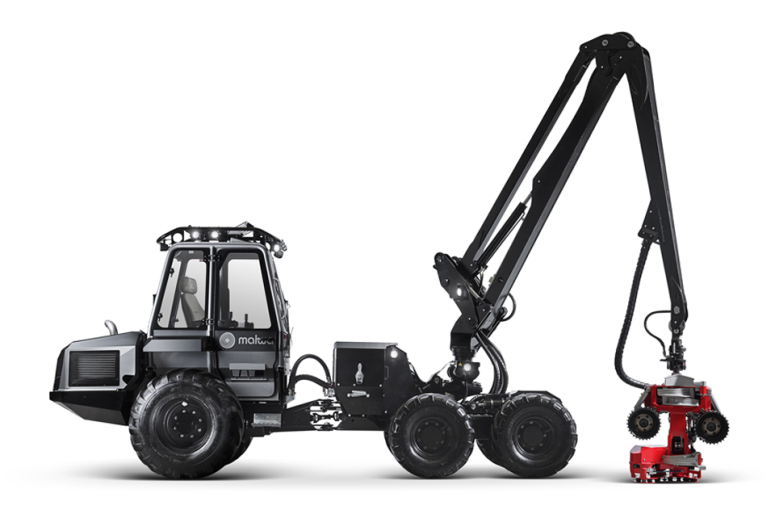

Malwa 560H Harvester


Malwa's class leading small low impact harvester designed for in-stand first and second thinning with minimal canopy openings and ground damage.  A Logmax 2000T head hung on the end of a parallel-lift Mowi crane makes for a very fast and efficient harvester when processing trees of up to 42 cm diameter.  Low ground pressure, low fuel consumption and high levels of productivity make this the ideal choice for harvesting on sensitive sites where larger machines are not suitable or where the landowner wants to protect his forest asset for the future.

Productive in - stand low impact thinnings harvester – even in sensitive ground and moorland.

Weighs only 6,200 kg (7,200 kg with water - filled wheels) with option of mounting band - tracks on the bogie.  2.8 litre CAT - engine that meets the demands according to Euro 5/Stage - V and has sufficient power to drive a Logmax 2000T harvester head with 42 cm cutting capacity.

Malwa 560H and Logmax 2000T – the perfect combination for high quality thinning.

Link to manufacturer:

Steering Angle± 45°
Standard Tyre Size500/50 - 17 , 500/60 - 22.5
Standard CraneMowi P40 parallel crane
Reach6.2 m
Lifting Torque37 kNm
Slew Torque8.5 kNm
Max Felling Diameter42 cm
Engine Power75 hp (55 kW) @ 2,200 rpm
Oil Pressure195 bar
Oil Flow148 L/min @ 1,700 rpm
Country of ManufactureSweden
