AMR Triomat

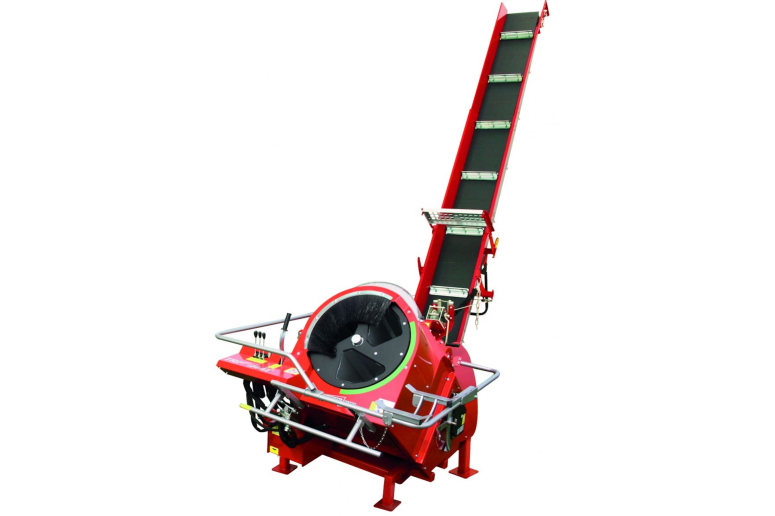

Triomat Automatic Crosscut Saw

The automatic drum saw with 3 chambers is able to cut extremely fast with high performance while maintaining maximum safety.  This model is specifically designed for a larger wood sizes.

Standard features:

  • Double - acting cylinder on the conveyor belt
  • Drive clutch for the saw blade with emergency stop
  • Cutting capacity: up to 10.5 steres/hr (1 ㎥/hr is 1 stere/hr)
  • Adjustable cutting length: 25 - 52 cm without tools
  • Drum rotation and conveyor speed adjustable
  • 5 m x 35 cm belt with hydraulic drive
  • Electric engine (9.2 KW, 400 V, 32 A)
  • Safety grid
  • Specific TCT blade (700 mm x 6 or 4.5 mm)
  • No direct access to blade for safety
  • Wood disposal support included
  • Torque limiter included
  • 3 - point linkage attachment (Cat. I & II)

Optional extras:

  • Axle kit for all power types
  • Tool box

Link to manufacturer:

Max Cutting Diameter19/30 cm (round/split wood)
Length of Split25 - 52 cm
Saw TypeCircular Saw
Circular Saw Diameter700 mm
Conveyor Length5 m
Slewing ConveyorNo
Transport Dimensions2450 x 2200 x 1600 mm (HxLxB)
Country of ManufactureFrance
