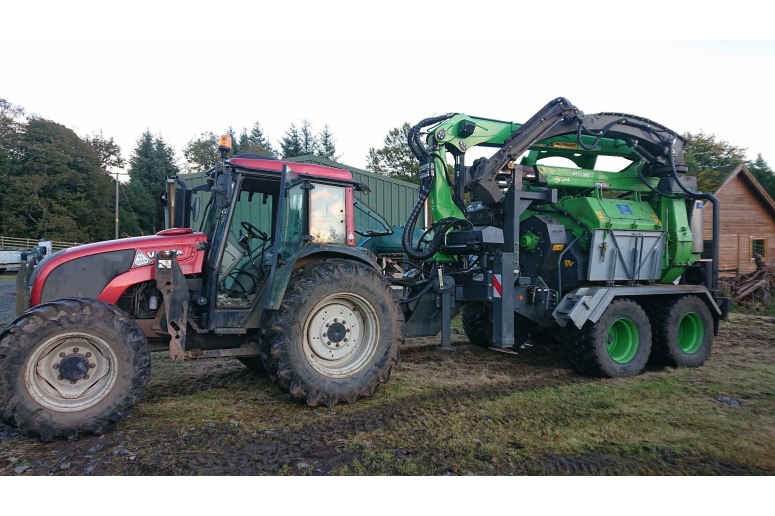

HM14-860K Woodchipper


High Capacity Crane Fed Chipper

HM 14 - 860 K chipper is the largest chipper in the Heizohack range.  The large top infeed roller (⌀ 800 mm) ensures safe reliable processing even with bulky material.  Heizohack chippers are equipped with a low drag drum chipper allowing the possibility of low drive performance and reduced fuel consumption.

Standard features:

  • Infeed dimensions: 800 x 1215 mm
  • Trunk ⌀ 650 mm
  • 900 mm long chain infeed conveyor
  • 1500 mm long infeed table: hydraulically folding with chain conveyor and additional intake roller
  • ⌀ 800 mm pressure infeed roller
  • Std. sieve: 45/60 mm with stop bars
  • ⌀ 695 mm chopping drum with quick - change knives
  • PTO driven from tractor turning a V - Belt transmission
  • Flywheel dimensions: ⌀ 1370 mm by 150 mm wide
  • Discharge spout: foldable, pivoting and adjustable end flap all hydraulically controlled
  • Chipper controls: auto load - sensing infeed (stress control), adjustable infeed speed, infeed direction reversible, remote control with 10 m cable & control panel for all functions
  • 60 km/h chassis

Optional extras:

  • Opt. sieves: 60/80 mm or 80/80 mm
  • Crane mountable: Palfinger Epsilon C60F 86, M70F 101, S100F 101
  • Telescopic discharge spout: height asjustment
  • Camera systems & lights available: reversing & discharge spout monitoring
  • Central lubrication system
  • Foot pedal & radio control options
  • Cone splitter
  • Rear hitch options

Link to manufacturer:

Infeed Height800 mm
Infeed Width1215 mm
Power Required300 + hp
Output120 - 170 ㎥/hr
Number of Blades14
Infeed Roller Diameter800 mm
Chipping Drum Diameter690 mm
Infeed Table Length1500 mm
Standard Sieve45/60 mm + stop bars
Flywheel Diameter1370 mm
Flywheel Mass470 kg
Transport Dimensions3650 x 2980 x 5800 mm (HxWxL)
Working Dimensions5330 x 4300 x 5800 mm (HxWxL)
Country of ManufactureGermany
