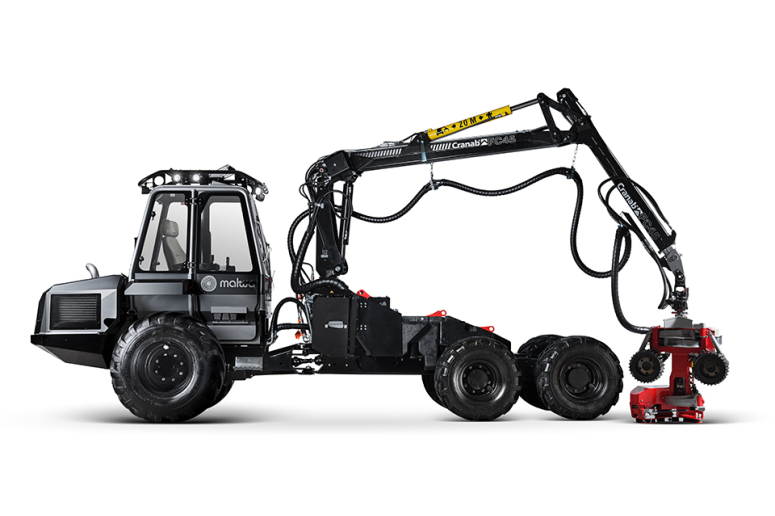

Malwa 560C Combi Harvester/Forwarder
Malwa's class leading chassis configured to give a harvester and a forwarder in one machine. With the ability to change between a harvester with a cutting diameter of 42 cm and a forwarder with a 5.5 tonne carrying capacity in about 20 minutes this truly is a one stop shop for sylvicultural thinning. The low environmental impact and rugged design are the same as the other machines in the 560 series.
Productive in - stand dual machine which simply and easily converts between harvester and forwarder without compromising productivity or performance of either. A unique solution with removable counterweights allows the Combi to perform as well as a traditional harvester.
Spacious storage compartment houses four 20 - litre containers for extra diesel, for example, or stump treatment fluid. Plus extra chains, bar and special tools.
May be transported by means of hook - lift platform. Being able to move ’two machines at one go’ makes the Combi perfect both for thinning tasks and dealing with windblown sites.
2.8 litre CAT - engine that meets the demands according to Euro 5/Stage - V. Logmax 2000T harvester head with up to 42 cm cutting diameter and 5.5 tonne load capacity as a forwarder.
Uniquely good handling and mobility – even on sensitive ground or moorland.
Link to manufacturer:
|Load Bunk Area||2 ㎡|
|Steering Angle||± 45°|
|Number of Bunks as Standard||3|
|Standard Tyre Size||500/50 - 17, 500/60 - 22.5|
|Standard Crane||Cranab FC45|
|Lifting Torque||45.6 kNm|
|Lift Capacity at 3m||1120 kg|
|Slew Torque||13 kNm|
|Standard Grapple||Grippen HSP 015|
|Max Felling Diameter||42 cm|
|Engine Power||75 hp (55 kW) @ 2,200 rpm|
|Oil Pressure||195 bar|
|Oil Flow||148 L/min @ 1,700 rpm|
|Transport Dimensions||2850 x 1950 x 6300 mm (HxWxL) Ground clearance 400 mm|
|Country of Manufacture||Sweden|
