HM14-860KL Truck Chipper


High Capacity Lorry Mounted Chipper

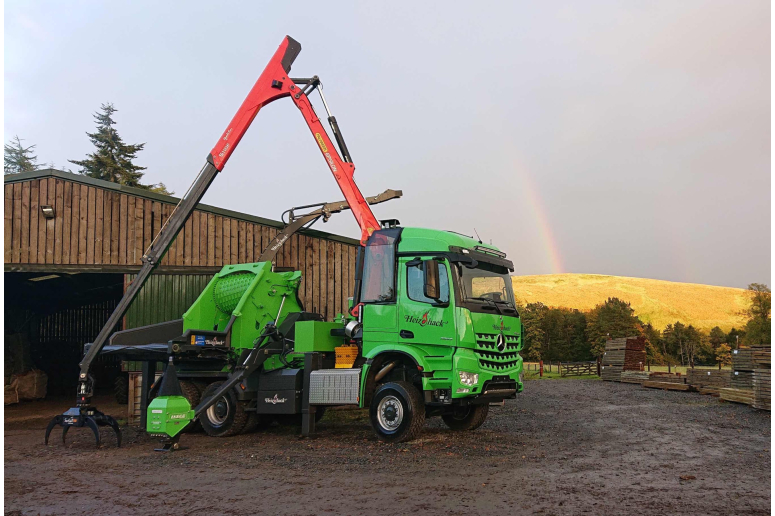

HM 14 - 860 KL is the largest lorry mounted chipper in the Heizohack range.  The large top infeed roller (⌀ 800 mm) ensures safe reliable processing even with bulky  material.  Heizohack chippers are equipped with a low drag drum chipper allowing the possibility of low drive performance and reduced fuel consumption.  The HM 14 - 860 KL is equiped with a  Palfinger Epsilon S101F 101 crane: max reach 10.1 m, slew torque 44 KNm and a working angle of 385°.

It is mounted to a Mercedes - Benz Arocs 6x6 (6 wheel drive) chassis producing 530 hp.  Everything is controlled from inside the lorry making use of the Stream Space - cabine, giving excellent visibilty during operations.  Power to the chipper comes from the Arocs gearbox - independent PTO (NMV) directly from the engine.  Thanks to its 6x6 drive, the three - axle this Heizohack - Chipper is very well suited for use in even the most difficult terrain.

Standard features:

  • Infeed dimensions: 800 x 1215 mm
  • ⌀ 650 mm trunk intake
  • 900 mm long chain infeed conveyor
  • Drum ⌀ 690 mm with quick - change knives
  • Hydraulic infeed table with chain conveyor and roller
  • Hard metal multipiece counter knife
  • Hydraulic discharge spout: folding, pivoting, height adjustment and end flap control
  • Chipper controls: auto load - sensing infeed (stress control), adjustable infeed speed, infeed direction reversible
  • Camera system & lights: reversing & discharge spout monitoring
  • Central lubrication system
  • Foot pedal control: infeed direction, infeed roller speed
  • Radio control for chipper functions

Optional extras:

  • Cone splitter
  • Drive from operators seat: control the manouvering of the Arocs from the chipper seat
  • Off road tyres

Link to manufacturer:

Infeed Height800 mm
Infeed Width1215 mm
Power Required530 hp
Output150 - 200 ㎥/hr
Number of Blades14
Infeed Roller Diameter800 mm
Chipping Drum Diameter690 mm
Infeed Table Length1500 mm
Standard Sieve45/50 mm + stop bars
Flywheel Diameter1370 mm
Flywheel Mass470 kg
Country of ManufactureGermany
